Isotex COAGULATION & COATING LINE
Working width: 1600 mm
production year: 1997
Offer Type |
For Sell
|
brand |
ISOTEX
|
model |
COAGULATION & COATING LINE |
Working width |
1600 mm
|
production year |
1997 |
quantity |
1 set |
location |
Europe |
state |
used
|
msv code |
4942 |

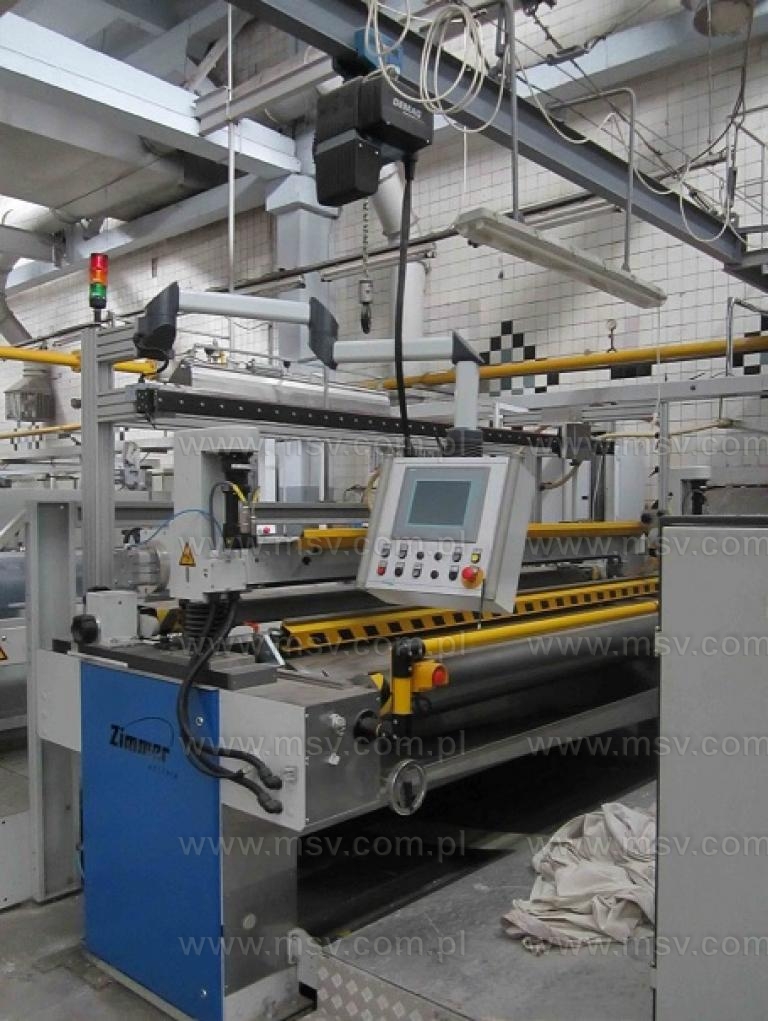

COMPLETE NUOVA ISOTEX COAGULATION & COATING LINE
Year of production: 1997
Working width: 1600 mm
Roller width: 1800 mm
Line Speed: 4-8 m/min.
Max. temperature: 210 deg C
Materials: PVC and PU
Application:
line for coagulation used for coating solutions of polyurethane products directly affixed to the fabric. In the process of coating the wet DMF solution is rinsed out of the coagulating bath, which is controlled by the concentration of the solution (concentration DMF). The solution of the coagulating bath is discharged to the rectifying tower tanks where it is recovered.
Consisting of:
-Entry from Big Batcher (Carriage Truck), Type CR 150
-Accumulator, Type AC 40, Content 30 mÂ
-Impregnation Bath, Type BIM
-Pre-Coagulation Bath, Type BCP, Feeding length 130 m
-Coating Unit, Type KRC,Resin 8-2000 g/m², 2 Blades, 400 mm stroke
-Coagulation Bath, Type BC, Feeding length 80 m
-Washing Bath, Type BL 12, Feeding length 130 m, Capacity 42 m³
-Pre-Dryer, Type V/PM, Oil-heated, Thermal Power 55.000 kCal/h,
-Horizontal Dryer (Stenter), Type EFFEDUE Flat 2000, 4 Comp.
-Cooling Rollers at Exit, Type RAV-2-637, Roller diameter 637 mm
-Exit with Rewinding Unit to Big Batcher (Carriage Truck), Type TM
The production line is in good technical condition.
